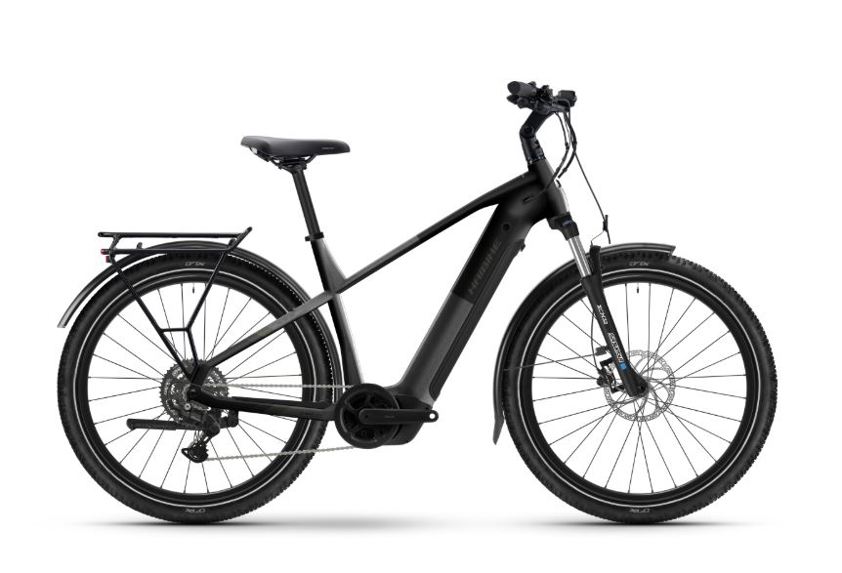

Make life easy – with the new HAIBIKE TREKKING 3. An eTrekking bike for anyone who wants to just hop on and ride. No compromises. The new Bosch Performance motor delivers smooth support, while the 540Wh battery provides enough range for your daily routine, weekend trips and everything in between. Comfort is key: an adjustable stem, suspension fork and relaxed riding position make every journey a pleasure. You also get full everyday practicality – with mudguards, lights, MIK luggage rack and road-legal equipment. Plus: thanks to the Modular Rail System, you can easily add accessories like frame bags, locks or bottle holders. Available in high- and low-step versions, the TREKKING 3 fits right into your life – and offers unbeatable value for money.
- Alloy Frame
- Suntour XCM34 120mm Fork
- Bosch Performance Line 75Nm Motor
- 500Wh Powertube Battery
- Shimano CUES 10 Speed Gearing
Bike Geometry
- Bottom bracket drop [mm]: 60 mm
- Chain stay length [mm]: 465 mm
- Fork total length [mm]: 44 mm
- Head tube angle: 68 degrees
- Head tube length [mm]: 140 mm
- Reach [mm]: 432 mm
- Stack [mm]: 656 mm
- Stand over height [mm]: 760 mm
- Seat tube angle: 74 degrees
- Seat tube length [mm]: 450 mm
- Top tube length [mm]: 620 mm
- Wheelbase [mm]: 1181 mm
Brake system
- Brake Front Mount: Post Mount
- Brake Rear Mount: Post Mount
- Brake Front Description: Tektro, Hydraulic Disc brake, HD-M280, 2 pistons, 180 mm
- Brake Rear Description: Tektro, Hydraulic Disc brake, HD-M280, 2 pistons, 180 mm
- Brake Lever Description: Tektro, HD-M280-BL
Carrier
- Max Weight Carrier Rear: 27 kg
- Carrier Rear Description: Easylife, MIK, System luggage carrier
Drivetrain
- Cassette Teeth: 11-46T
- Crankset Teeth: 38T
- Crankset Type: single
- Cassette Description: Shimano, CUES CS-LG300-9, HG
- Chain Description: KMC, Chain, eGlide with EPT Coating 9-11s
- Crankset Description: XLC, CR-E18 CRNKS + Chainring CR-E15 BDU38 + Bashring
- Derailleur Rear Description: Shimano, CUES RD-U4000-GS 9s, Shadow
- Gear Description: Shimano, Derailleur, CUES
- Pedal Description: XLC, PD-M30 Flat Pedal w/ Reflector + Rubber Slip
- Shifter Right Description: Shimano, Triggershift, CUES SL-U4010-9R, Rapidfire+
E-bike components
- Battery Capacity: 540 Wh
- Battery Location: Powertube
- Motor Torque [nm]: 75 Nm
- Motor Location: Center
- Battery Description: Bosch
- Charger Description: Bosch, Charger 4A 220-240V
- Display Description: Bosch, Intuvia 100, Intuvia 100 + LED Remote
- Motor Description: Bosch, Performance Line, Performance Line
Frame and more
- Framesize: 45 cm
- Framesize Convection: M
- Max loadable weight (KG): 150 kg
- Front Fork Type: Suspension
- Front Fork Description: Suntour, XCM32 Boost DS Coil 100 mm
- Frame Description: High, Aluminium, Uni
- Stand Description: XLC, Single, Mooi 18 mm, Max. Length: 333 mm
Handlebar and Saddle
- Handlebar Material: Aluminium
- Seatpost Material: Aluminium
- Handgrip Description: XLC
- Handlebar Description: XLC, Riser Bar, HB-C32, Dia. 31.8 mm, Rise: 25 mm, backsweep 15°
- Headset Description: Feimin, Semi-integrated, FP-H856U ZS44 + ACROS BlockLock ZS56
- Saddle Description: XLC, SA-S10 143 mm Sport
- Seatpost Description: XLC, Non Suspension, SP-R30, Dia. 34.9 mm, L: 450 mm
- Stem Description: XLC, ST-M36, Dia. 31.8 mm, L: 70 mm, A-Head
Lighting
- Brake Light: No
- Front Light Description: Herrmans, MR5, Standard bracket, 40 Lux
- Rear Light Description: AXA, Juno E-Bike, 6-12V
Wheels and wheel components
- Hub Front Description: XLC, HF-M15 Boost 15x110 mm, 32H, 6 bolt Disc
- Hub Rear Description: XLC, HR-M15 Boost 12x148 mm, 32H, 6 bolt Disc, HG
- Mudguard Front Description: Curana, Apollo 70, extra matte black
- Mudguard Rear Description: Curana, Apollo 70, extra matte black
- Rim Description: XLC, WR-M17 Disc 25/584 32H 6,5 mm Valve
- Spoke Description: Sapim, Leader Dia. 2.0 mm
- Tyre Description: XLC, VT-T45 Toorak w/ reflective stripes, 60-584
- Wheelsize Description: 27.5
