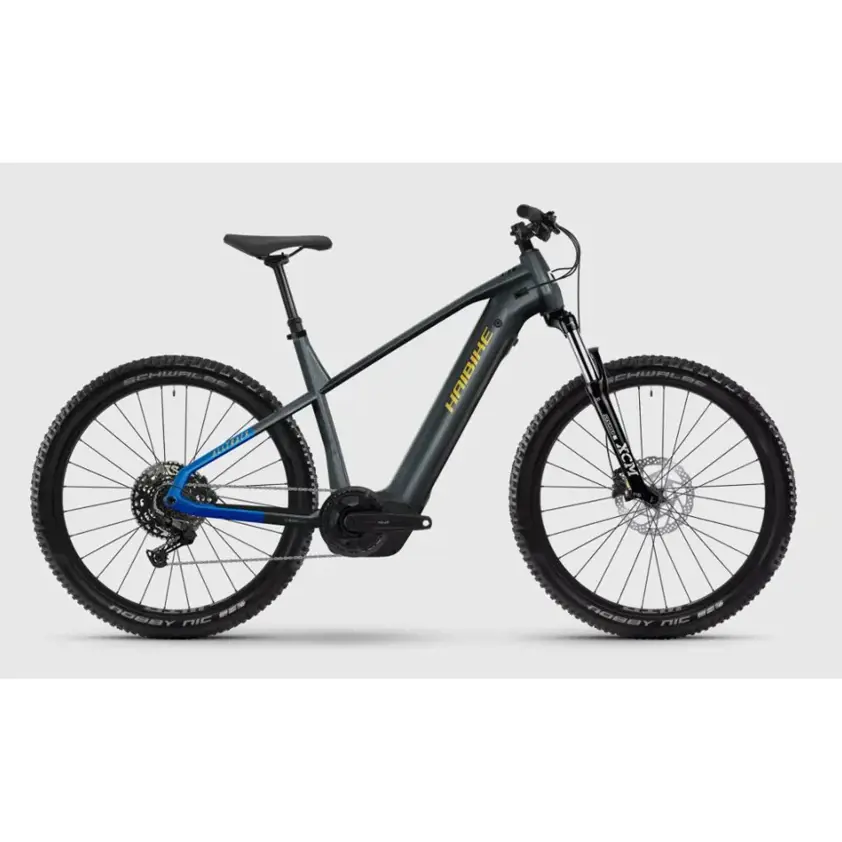

Make a statement wherever you ride. Our ALLTRACK 6.5 perfectly balances on- and off-road performance, delivering maximum power. Equipped with the latest Bosch Performance Line CX motor, this hardtail eMTB is built for performance. The 600Wh battery ensures plenty of range for your trail rides, while the optional Range Extender allows you to push your adventures even further. With reliable Shimano components for riding safety and an SR Suntour suspension fork with 120mm of travel to handle impacts, this bike is made for serious trail action. The vibrant colours add a design flair that ensures this bike stands out both on and off the trail. Perfect for making a powerful impression on any terrain.
- Alloy Frame
- Suntour XCM34 120mm Fork
- Bosch Performance Line CX Motor
- 600Wh Powertube Battery
- Shimano CUES 11 Speed Gearing
Specification
Bike Geometry
- Bottom bracket drop [mm]:
- · 60 mm
- · 65 mm
- Chain stay length [mm]:
- · 465 mm
- · 475 mm
- Head tube angle:
- · 68 degrees
- · 67 degrees
- Head tube length [mm]:
- · 140 mm
- · 150 mm
- · 160 mm
- Reach [mm]:
- · 422 mm
- · 432 mm
- · 452 mm
- · 472 mm
- Stack [mm]:
- · 656 mm
- · 674 mm
- · 683 mm
- · 692 mm
- Stand over height [mm]:
- · 760 mm
- · 790 mm
- Seat tube angle: 74 degrees
- Seat tube length [mm]:
- · 400 mm
- · 450 mm
- · 500 mm
- · 550 mm
- Top tube length [mm]:
- · 610 mm
- · 625 mm
- · 648 mm
- · 670 mm
- Wheelbase [mm]:
- · 1171 mm
- · 1216 mm
- · 1240 mm
- · 1264 mm
Brake system
- Brake Front Brand: Shimano
- Brake Front Kind: Deore BR-MT410, 2 pistons, resin pad, 180 mm
- Brake Front Mount: Post Mount
- Brake Front Type: Hydraulic Disc brake
- Brake Rear Brand: Shimano
- Brake Rear Kind: Deore BR-MT410, 2 pistons, resin pad, 180 mm
- Brake Rear Mount: Post Mount
- Brake Rear Type: Hydraulic Disc brake
- Brake Lever Brand: Shimano
- Brake Lever Kind: BL-MT401
- Brake Rotor Brand: Shimano
- Brake Rotor Kind: SM-RT30 180 mm, Centerlock
Drivetrain
- Cassette Brand: Shimano
- Cassette Kind: CUES CS-LG400-11, HG
- Cassette Teeth: 11-50T
- Chain Brand: Shimano
- Chain Kind: CN-LG500 9-11s, LINKGLIDE
- Chain Type: Chain
- Crank Arm length: 170
- Crankset Brand: Miranda
- Crankset Kind: Crius ISIS Crankset + Chainring Spiderless BDU38
- Crankset Teeth: 38T
- Crankset Type: single
- Derailleur Hanger Brand: Glory Wheel
- Derailleur Hanger Kind: UDH
- Derailleur Rear Brand: Shimano
- Derailleur Rear Kind: CUES RD-U6000 10/11s, Shadow+
- Gear Brand: Shimano
- Gear Kind: CUES
- Gear Type: Derailleur
- Number Of Gears: 11
- Pedal Brand: VP
- Pedal Inclusive: Yes
- Pedal Kind: VPE-527 Alloy w/ Reflector
- Shifter Right Brand: Shimano
- Shifter Right Kind: CUES SL-U6000-11R, Rapidfire+
- Shifter Right Type: Triggershift
E-bike components
- Battery Brand: Bosch
- Battery Capacity: 600 Wh
- Battery Kind: InTube 600Wh
- Battery Location: Powertube
- Charger Brand: Bosch
- Charger Kind: Charger 4A 220-240V
- Display Brand: Bosch
- Display Kind: Purion 200
- Max Support Speed [km/h]: 25 km/h
- Motor Brand: Bosch
- Motor Torque [nm]: 85 Nm
- Motor Kind: Performance Line CX
- Motor Location: Center
- Motor Type: Performance Line CX
Frame and more
- Framesize:
- · 40 cm
- · 45 cm
- · 50 cm
- · 55 cm
- Framesize Convection:
- · S
- · M
- · L
- · XL
- Max loadable weight (KG): 150 kg
- Front Fork Brand: Suntour
- Front Fork Kind: XCM34-Boost NLO DS 15AH2-110 120 mm
- Front Fork Type: Suspension
- Frame Kind: High
- Suspension Type: Hardtail
- Travel Front: 120 mm
Handlebar and Saddle
- Handgrip Brand: XLC
- Grip Kind: MTB Grip Set VLG-1751D2
- Handlebar Brand: XLC
- Handlebar Diameter: 31.8 mm
- Handlebar Kind: MTB CAT4, Dia. 31.8 mm, Rise: 15 mm, backsweep 9°
- Handlebar Material: Aluminium
- Handlebar Rise: 15
- Handlebar Type: Riser Bar
- Handlebar Width: 780 mm
- Headset Brand: Feimin
- Headset Kind: FP-H856U ZS44 + ACROS BlockLock ZS56
- Headset Type: Semi-integrated
- Saddle Brand: Selle Royal
- Saddle Kind: Vivo Ergo 1217HRN
- Seatpost Brand: Limotec
- Seatpost Kind: A1H Dropper, Dia. 34.9 mm, Travel: 125 mm
- Seatpost Length: 402 mm
- Seatpost Material: Aluminium
- Seatpost Travel (mm): 125 mm
- Seatpost Type: Dropperpost
- Stem Brand: XLC
- Stem Kind: MTB CAT4, Dia. 31.8 mm, L: 45 mm, A-Head
- Stem Length: 45 mm
Lighting
- Brake Light: No
Wheels and wheel components
- Hub Front Brand: Shimano
- Hub Front Kind: HB-TC500-15-B 15x110 mm, 32H, Centerlock
- Hub Rear Brand: Shimano
- Hub Rear Kind: FH-TC500-HM-B 12x148 mm, 32H, Centerlock, HG
- Rim Brand: WTB
- Rim Kind:
- · ST i30 TCS 2.0 27.5" 32H
- · ST i30 TCS 2.0 29" 32H
- Rim Rear Brand: WTB
- Rim Rear Kind:
- · ST i30 TCS 2.0 27.5" 32H
- · ST i30 TCS 2.0 29" 32H
- Spoke Brand: Sapim
- Spoke Kind: Leader Dia. 2.0 mm
- Tyre Brand: Schwalbe
- Tyre Kind: Nobby Nic Performance, ADDIX, 67EPI
- Tyre Rear Brand: Schwalbe
- Tyre Rear Kind: Nobby Nic Performance, ADDIX, 67EPI
- Tyre Size Etrto:
- · 65-584
- · 65-622
- Wheel Size Front:
- · 29
- · 27.5
- Wheel Size Rear:
- · 29
- · 27.5
